Sibo se ha enfocado en potenciómetros y sensores durante 30 años.

30JBK
30JBK

30JBK

Potentiometer-type Joysticks

瀏覽量： Tiempo: 2023-01-09

    Características：

  • 3-dimensional coordinate type joystick

  • Potentiometer incorporated type

  • With conductive plastic element

  • With spring return device

  • Industrial joystick

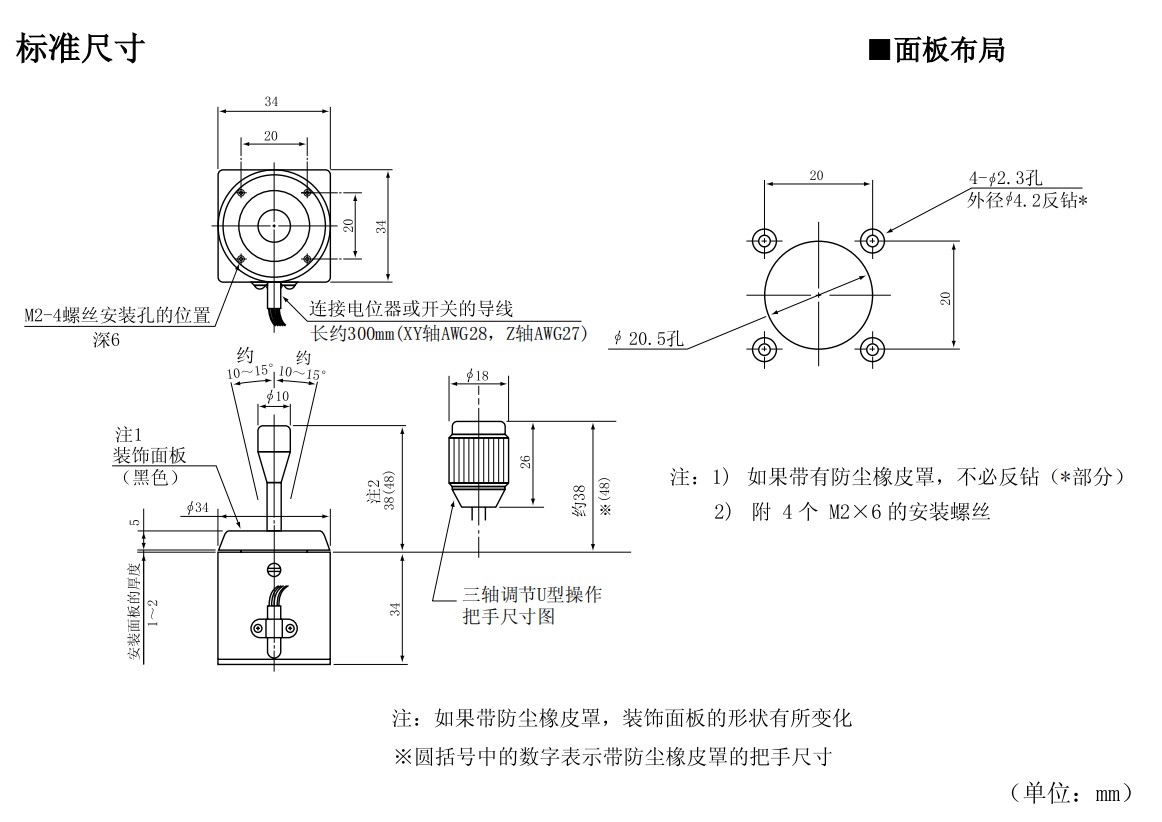

Dimensión


Parámetro

General Mechanical Specifications

Controlling range of operating lever

X and Y directions : Approx.±10°～±15° from center position.(Omni-directionally), Z direction : Approx.±30°～±35° from center position

Operating force

(Standard spring return device Automatically return to center), (Omni-directionally), X and Y directions : Approx.0.8～2N (80～200gf), Z direction : Approx.15～60mN?m (150～600gf.cm)

Operating temperature range

-20℃~+65℃

Vibration

10~55HZ，98m/s2

Shock

294m/S2

Life expectancy

Approx. 5,000,000 operations

Mass

2-dimensional coordinate type : Approx. 80g, 3-dimensional coordinate type : Approx. 100g

General Electrical Specifications

Potentiometers mounted

Special conductive plastic resistive element is exclusively used for 30JB series.

Type

X and Y axes pots, Z axis pot.

Rating

10kΩ±15%

Electrical rotating angle

0.1W, 0.04W

Resistance value

Approx.20°, Approx.60°

Independent Iinearity tolerance

±3%

Output smoothness

＜against input voltage 0.2%

Contact resistance variation

＜6%C.R.V

Resolution

Essentially infinite

Dielectric strength

1 minute at 500V.A.C.

Insulation resistance

＞1000MΩ（500V.D.C）
