Sibo se ha enfocado en potenciómetros y sensores durante 30 años.

OFCP50
OFCP50

OFCP50

Oli-Filled POT.

瀏覽量: Tiempo: 2023-01-09

    Características:

  • Single turn

  • Wirewound

  • Servomount

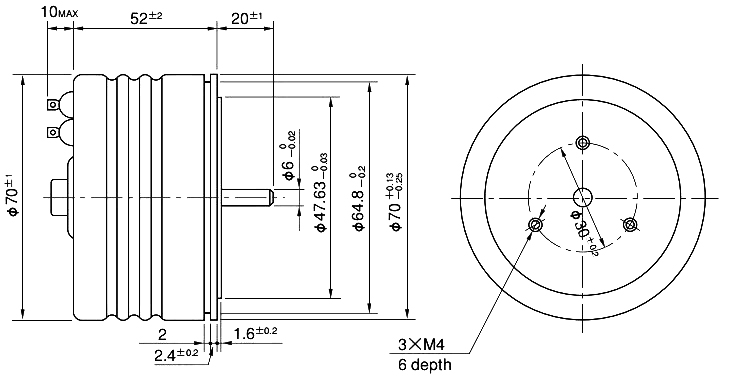

Dimensión


Parámetro

General Specifications

Standard Resistance Range

1KΩ~50KΩ

Total Resistance Tolerance

Standard Class ±3%(H), Precision Class ±1%(F)

Independent Linearity Tolerance

Standard Class ±0.5%, Precision Class ±0.1% (±0.2% in case of within 2kΩ )

Power Rating

1.5W

Noise

<100Ω E.N.R.

Electrical Travel

355°±3°

Mechanical Travel

360°(Endless)

Insulation Resistance

>100MΩ(1000V.D.C.)

Dielectric Strength

1 minute at 1,000V.A.C.

Starting Torque

<30mN·m(300gf·cm)

Resistance Temperature Coefficient

±20p.p.m./℃

Mass

Approx.500g

Special Specifications Available

Special resistance value

Special lower practical resistance values (50Ω to 500Ω )

Special shaft type

Shaft dia. (φ 6.35mm) with inch dimension, special machining on the shaft, shaft with front and rear extension (Rear shaft with 6mm dia. and 20mm length)

Special electrical travel

Special electrical travel

Special tap

Extra taps (Available up to 3 taps)

With stopper

Rotating angle is 330° and the stopper strength is 0.9N?m [9kgf?cm]
