Sibo se ha enfocado en potenciómetros y sensores durante 30 años.

HC60FCA
HC60FCA

HC60FCA

Magnetic-type Pedals

瀏覽量： Tiempo: 2023-01-09

    Características：

  • Hall effect IC type

  • Low-cost version

  • Suitable for different engine interfaces

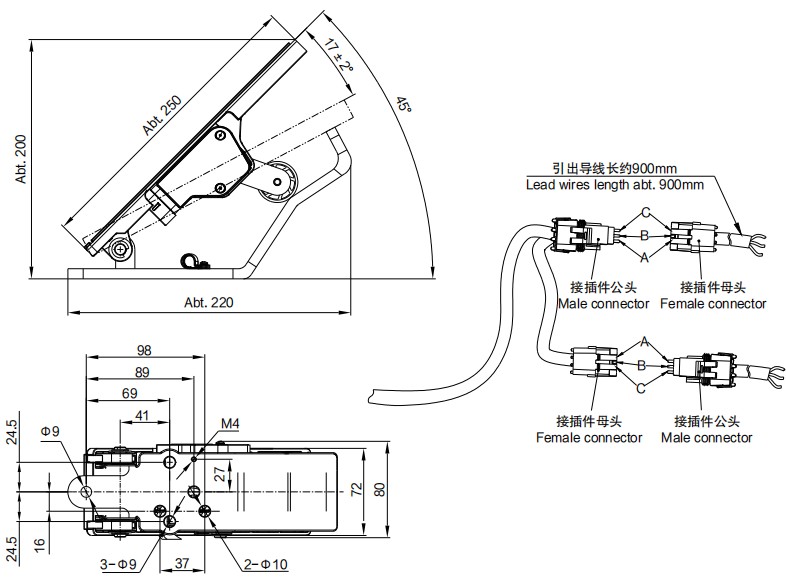

Dimensión


Parámetro

General Specifications

Operating angle

17°±2°

Operating force

40～50N

Mechanical life expectancy

10,000.000

Operating temperature

-40℃~ 85℃

Storage temperature

-50℃~ 120℃

Mass

Approx. 860g

Protection degree

IP66

Electrical Specifications

Applied voltage

5V±10%

Output signal

0～100%Vcc

Current consumption (no-load)

≤20mA

Independent linearity tolerance

±2%

Resolution

4096 (12 Bit)

Update rate

0.3ms

Insulation resistance

>1000MΩ (500V.D.C)

Dielectric strength

1 min (500V.A.C)

Terminal Connection Instructions

Terminal

Signal I; Signal II

Color / Function; Color / Function

A

Black / GND; Yellow / OUT2

B

Green / OUT1; Bule / GND

C

Red / 5VDC;White / 5VDC

Special Specifications Available

Other output signals

PWM

Electrical specifications

Special output range
