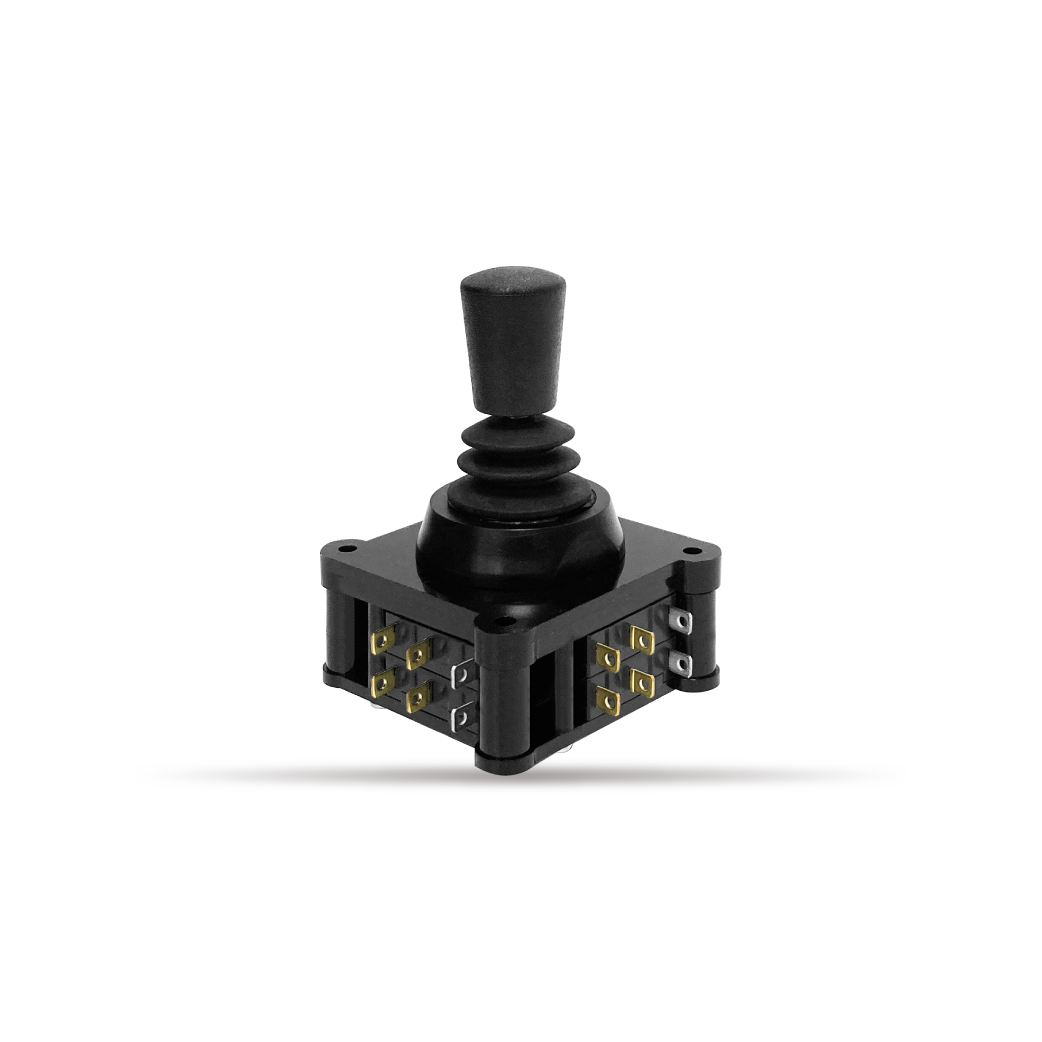

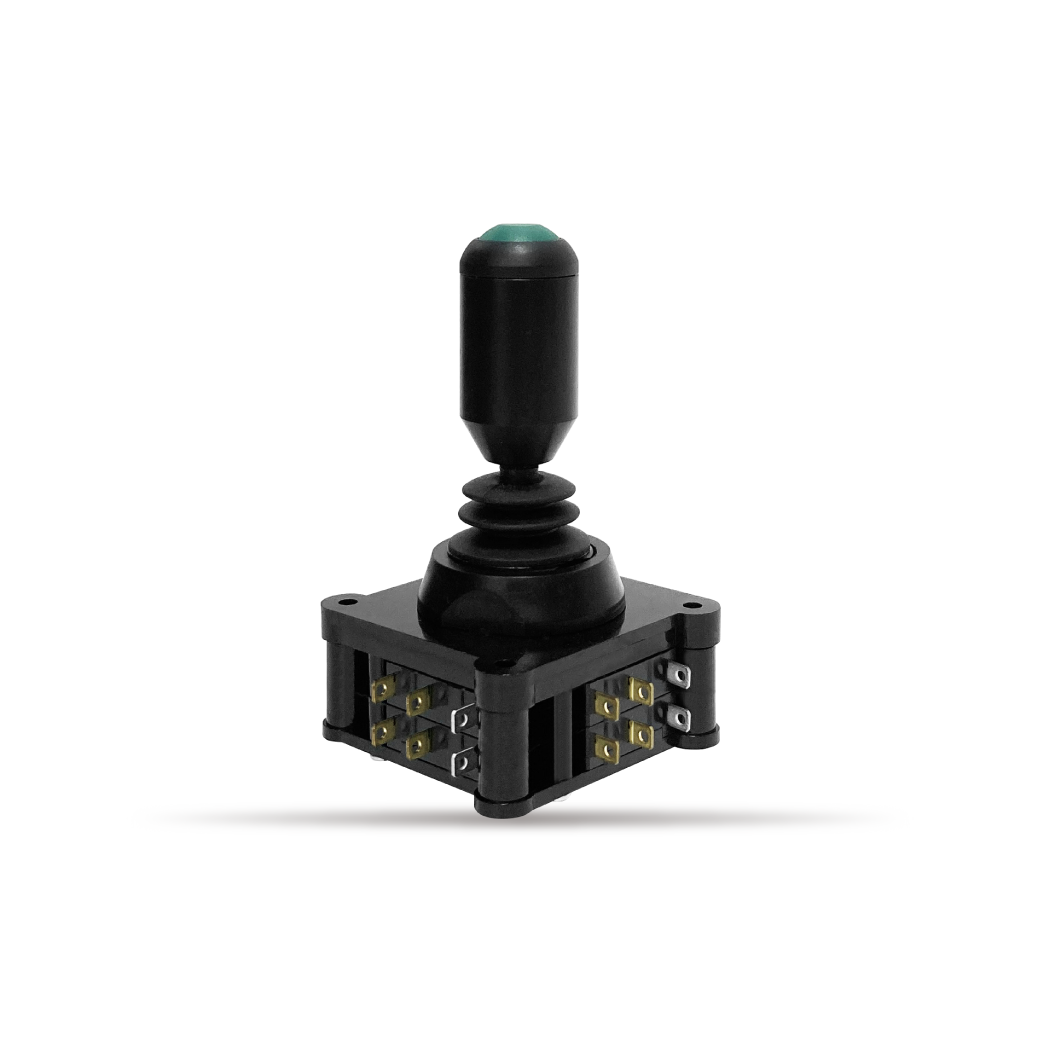

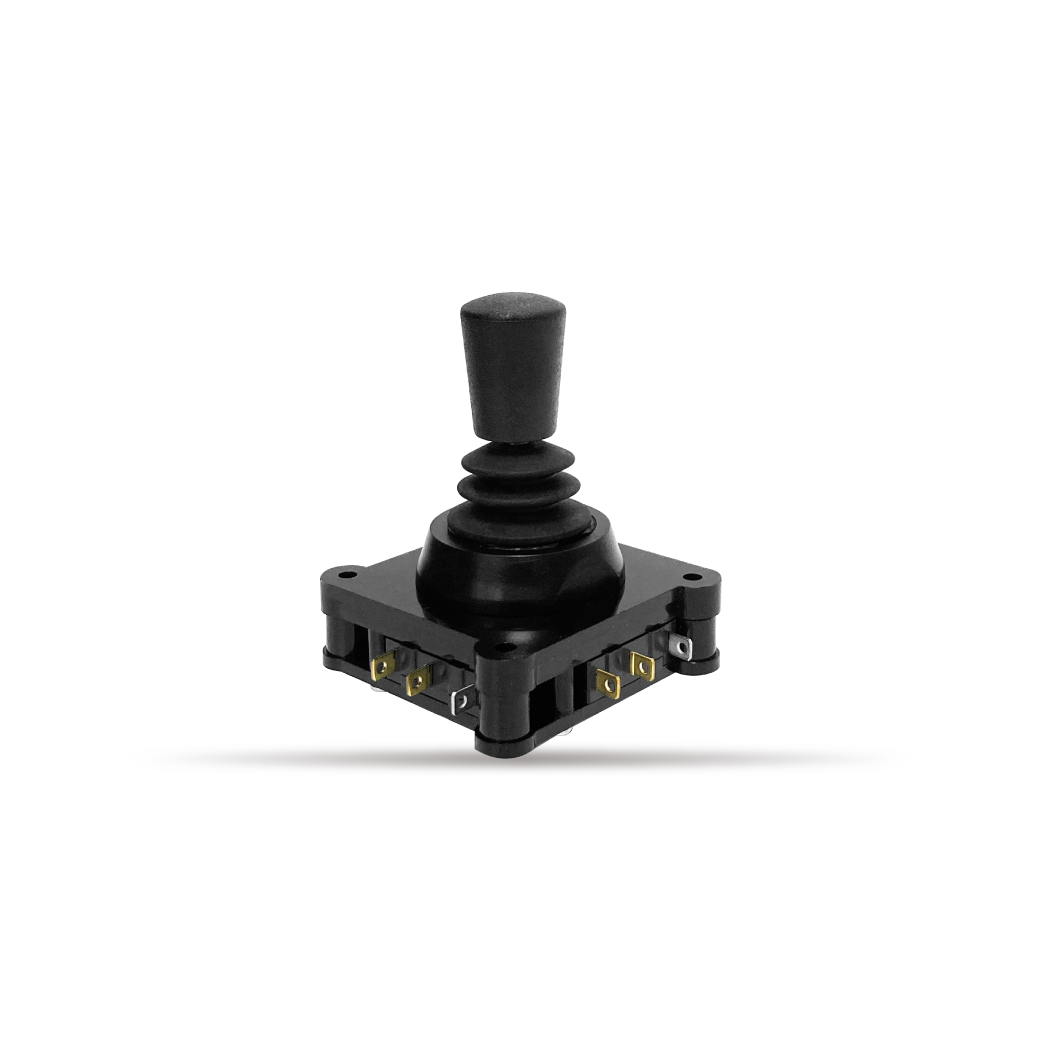

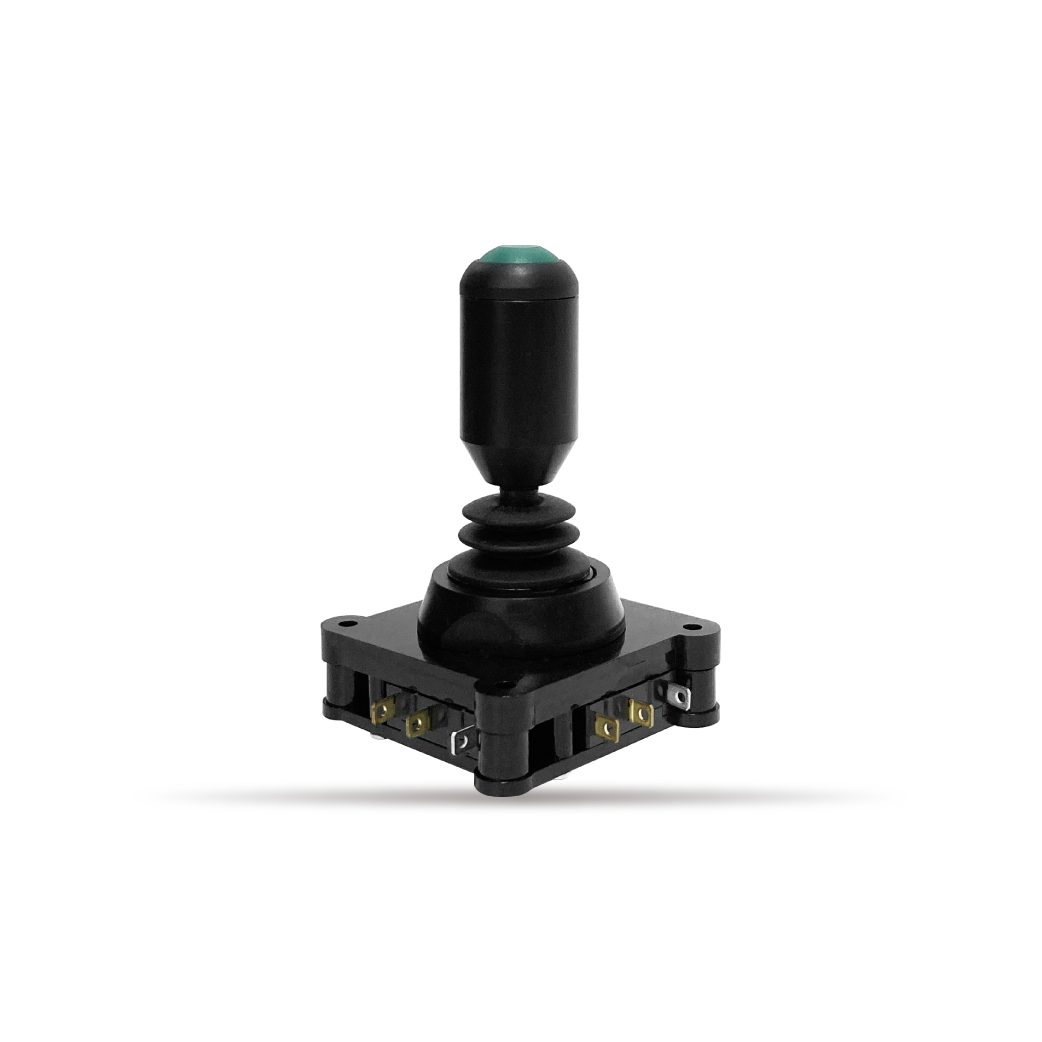

Switch-type Joysticks

瀏覽量: Time: 2023-01-09

    Characteristics:

  • Small-sized

  • Screw and nut mounting

  • Knobs with push button switch optional

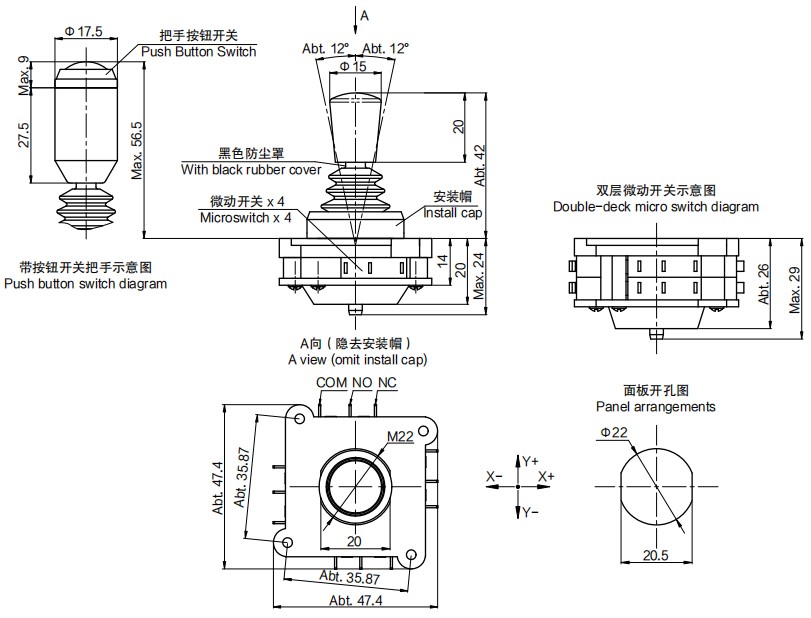

Dimension


Parameter

General Specifications

Operating angle

Approx. ±12º (From center position)

Operating force

Approx. 2.2N~2.8N

Maximum allowable force

100N

Mechanical life expectancy

Approx. 1,000,000

Operating temperature range

-20℃~+65℃

Storage conditions

-20℃~+65℃

Mass

Approx. 40g

Protection grade

IP65 (Above panel)

Electrical Specifications (Switch)

Electrical specifications (switch)

Push button switch,Microswitch

Rating

48V.D.C. / 0.1A,125V.A.C. / 5A

Electrical life expectancy

500,000,200,000

Mechanical life expectancy

1,000,000,30,000,000

Insulation resistance

>1000MΩ (500V.D.C.),>100MΩ (500V.D.C.)

Dielectric strength

1min (1000V.A.C.),1min (1000V.A.C.)

Special Specifications Available

Special mechanical property

Speical mechanical property such as special lever height, special spring return force, etc.

Special knob

Customized knob, with push button switch (with light is optional)

Special switch

Economy version micro-switch, with electrical life 50,000 and mechanical life 1,000,000
